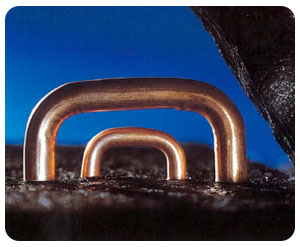

Cross-overs / C-Bends


We manufacture parts out of
Copper, aluminum, inox, cupro-nickel and iron.

Most required widespread models
Cross-overs we manufacture may be of different sizes in a range you can check among listed ones. With reasonable tooling sharing costs we can also manufacture the new tooling required to get models which are not yet listed in below size list. In case you cannot find here the dimensions you need or even in case you just wish to ask for further information, please get freely in touch with our sales office.

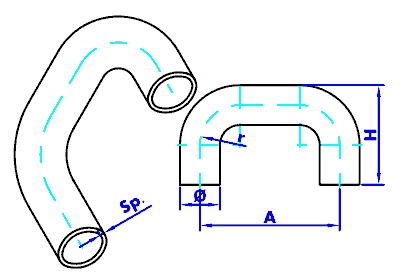

How to calculate height H
Cross-overs we manufacture may be of different Heights in a range you can check as follows by using a simple formula:
    • MINIMUM HEIGHT
      HALF DIAMETER + RAY + 5 mm.
    • MAXIMUM HEIGHT
      MINIMUM HEIGHT + 30 mm.

Example in mm on diameter Ø 9,52mm. and ray 12,5mm.:

( 9,52 / 2 ) + 12,5 + 5 = 22,26mm. Min.
( 22,26 + 30 ) = 52,26mm. Max.

Sizes List

Diameter Ø
mm.

Thickness Sp.
mm. min-max

Ray r
mm.
Centre-to-centre A
mm.
  9,52
0,4 - 0,7
12,5
38; 43,3; 50; 66; 75; 125;132; 175.


  12
0,5 - 0,7
15
52; 55; 55,4; 59; 60,6; 78;132.


  12,7
0,56 - 0,75
20
64,95; 60,92; 62,28; 70; 80;103,92; 121,5; 134,56; 173,20; 138,56.


  15
0,5 - 1
21,5
65; 86, 60; 70; 100; 138,5; 150.


15,88 0,5 - 1 20; 21,5
67; 69,3; 75; 78; 80; 86,6; 90;94;106; 114,3; 120; 132,3; 150; 153; 174; 180.
